Support Settings for Miniatures
From our personal tests, we recommended the following settings when printing your average 30mm miniature:
Light Supports
- Tip Diameter: 0.25mm
- Tip Length: 2mm
- Contact Depth: 0.07mm
- Diameter: 0.8-0.9mm
Medium Supports
- Tip Diameter: 0.35mm
- Tip Length: 2.25mm
- Contact Depth: 0.07mm
- Diameter: 1mm
Heavy Supports
- Tip Diameter: 0.45mm
- Tip Length: 2.5mm
- Contact Depth: 0.07mm
- Diameter: 1.2mm
Raft Settings
- Raft Thickness: 0.4-0.5mm

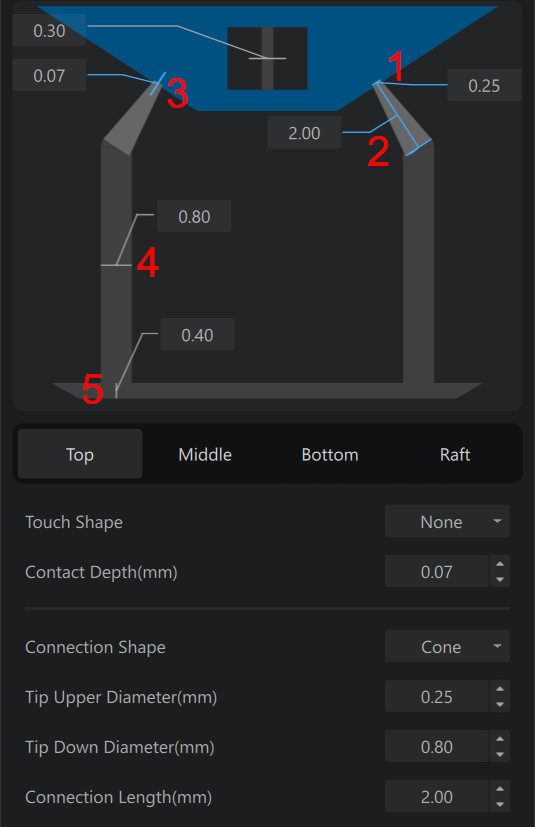

Example Light Supports
Tips
- Remember to set the appropriate amount of bottom layers based on raft thickness! See Bottom & Transition Layers for more information.
- When printing extra large or tall models, you will need to increase your supports Diameter and Tip Diameter settings.
- There is no magic formula for support settings. Each resin is different, and different types of models require different supports. Use the suggested values above for a good place to start and make adjustments as needed.
